iW-ST Starter Kit

The iW-ST Starter Kit is a compact devkit based on the STM32F030F4P6, designed for anyone who wants to explore the STM32 ecosystem with a focused board that is simple to power and ready for quick tests.

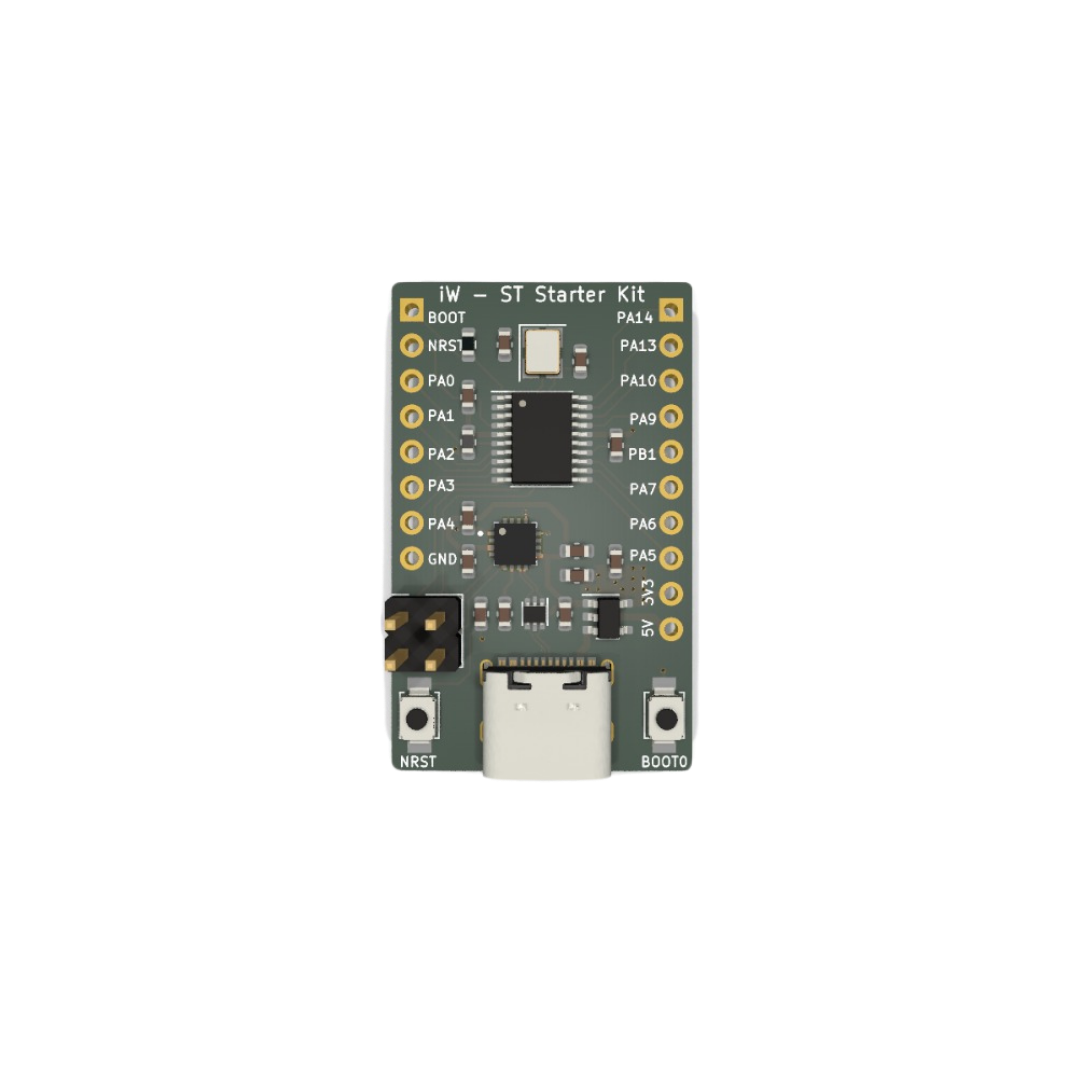

iW-ST Starter Kit board

Highlights​

  • 32-bit Arm Cortex-M0 MCU
  • Clock up to 48 MHz
  • 16 KB of Flash and 4 KB of SRAM
  • Programming over USB Type-C
  • SPI, I2C, ADC, timers, PWM and RTC

Main specifications​

Processing​

  • STM32F030F4P6
  • Arm Cortex-M0 core
  • Frequency up to 48 MHz

Memory​

  • 16 KB of Flash
  • 4 KB of SRAM with hardware parity

Analog and timing​

  • 12-bit ADC with up to 9 channels
  • Conversion range from 0 to 3.6 V
  • 5 timers for measurement, PWM and capture
  • RTC with alarm and periodic wakeup

Communication​

  • SPI with programmable 4-to-16-bit frames
  • I2C with Fast Mode Plus support

Where this board makes sense​

  • Studying and validating STM32 peripherals
  • Simple control prototypes
  • Small local interfaces and automation
  • Low-cost projects with an ARM MCU
  • Hardware: electrical specifications, power management, pin map and buttons.
  • Downloads: datasheet and supporting materials.
