iW-Scott DevKit

The iW-Scott DevKit was designed for edge computing, IoT and portable-device projects. It is a compact board with wireless connectivity, an on-board sensor and power features that help both with prototypes and with demos closer to the final product.

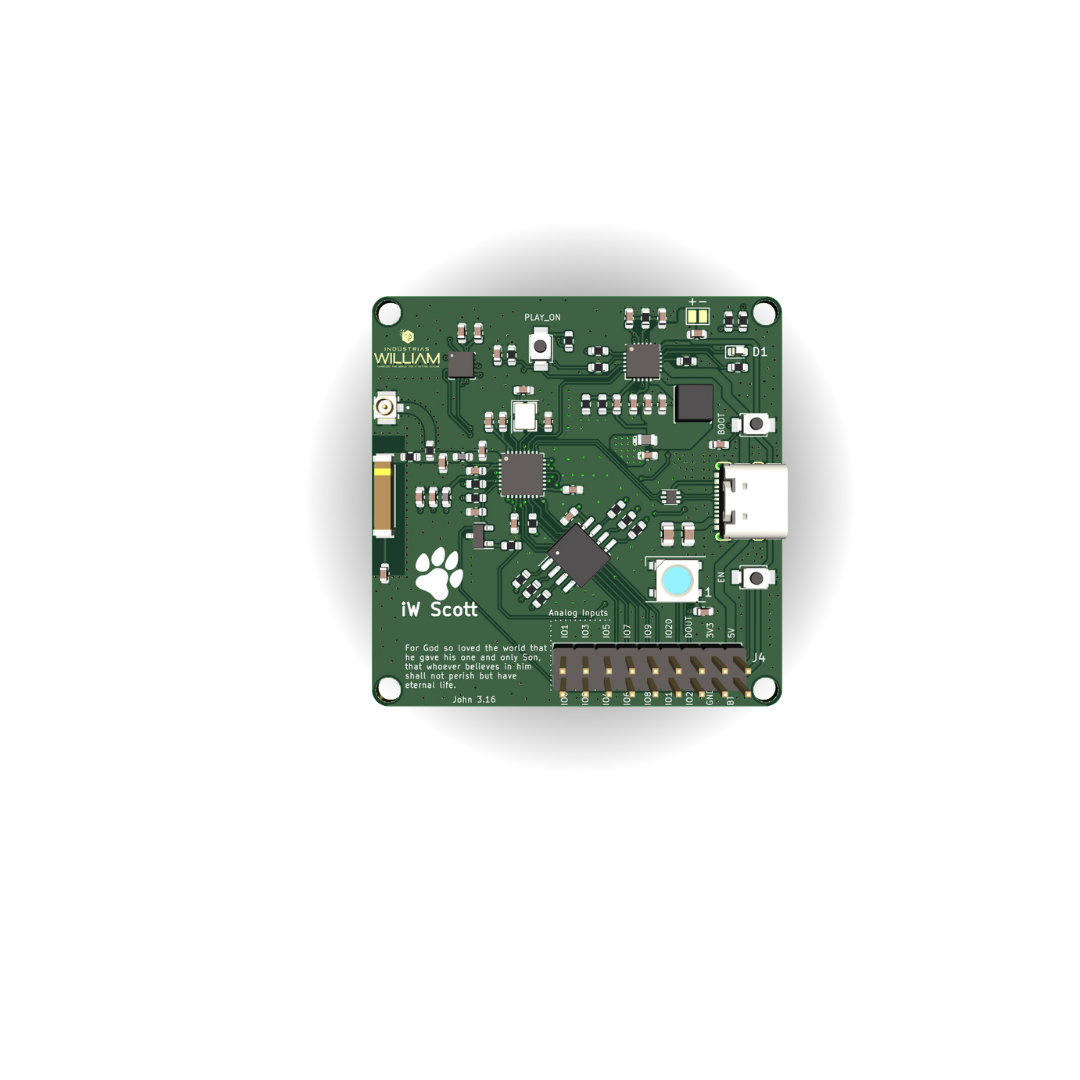

iW-Scott board

Highlights​

  • ESP32-C3 with Wi-Fi and Bluetooth 5 LE
  • 8 MB or 16 MB of Flash, depending on the version
  • Integrated LIS3DH accelerometer
  • On-board RGB LED
  • PT1502 PMIC with battery support
  • U.FL connector for an external antenna

Compatibility​

  • Arduino IDE
  • ESP-IDF
  • MicroPython
  • PlatformIO

Suggested applications​

  • low-power IoT
  • home automation
  • wearables and portable devices
  • compact BLE gateways
  • local interfaces with a small display

What already exists in the project​

This folder already contains practical examples for the board, including:

  • visual control with the accelerometer
  • a game with a display and a BLE joystick
  • a BLE gateway for reading and publishing sensors

See the Examples page for a summary of each case.
