iW-CORE-BOARD

The iW-CORE-BOARD V1 was created to shorten the path between prototype and final application. Instead of starting from a generic board and rebuilding the entire product base, the idea here is to use a modular platform ready to host application boards from the IW-APPLICATION line.

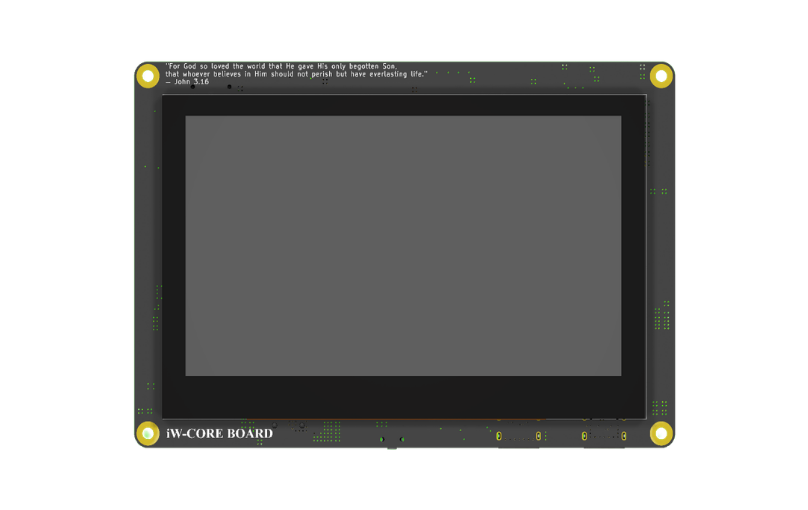

iW-CORE-BOARD-V1 board

Highlights​

  • STM32H750 with Cortex-M7 at 480 MHz
  • 32 MB of external XiP memory
  • DMA2D and JPEG Codec for graphics and imaging
  • integrated 4.3" display with capacitive touch
  • Quectel Wi-Fi + Bluetooth module
  • PMIC, RTC, battery and SD slot

Main features​

Interface and experience​

  • 4.3" display with 480 x 272 resolution
  • capacitive touch for HMIs and embedded products

Processing​

  • high-performance MCU for more demanding applications
  • accelerators aimed at interfaces and graphics processing

Connectivity and expansion​

  • Wi-Fi + Bluetooth module
  • USB-C for serial debug
  • USB FS
  • two IW-APPLICATION connectors

Power​

  • integrated PMIC
  • support for a BL-5C or JST battery
  • RTC with CR1220
  • dedicated power on/off button

Suggested applications​

  • industrial HMIs
  • more complete IoT products
  • field equipment with a local interface
  • professional embedded systems with modular expansion

Platform proposition​

The iW-CORE-BOARD exists so the team can focus on the final product sooner. It removes hardware-infrastructure steps and frees you up to develop functionality, UX and integration without spending weeks building a base from scratch.
